- Cod produs: B650 A ELITE AX ICE
- Grupă: Placi de baza
- Producător: Gigabyte
- Aparut din: 06.02.2024
- Garanție: Maxim 5 ani

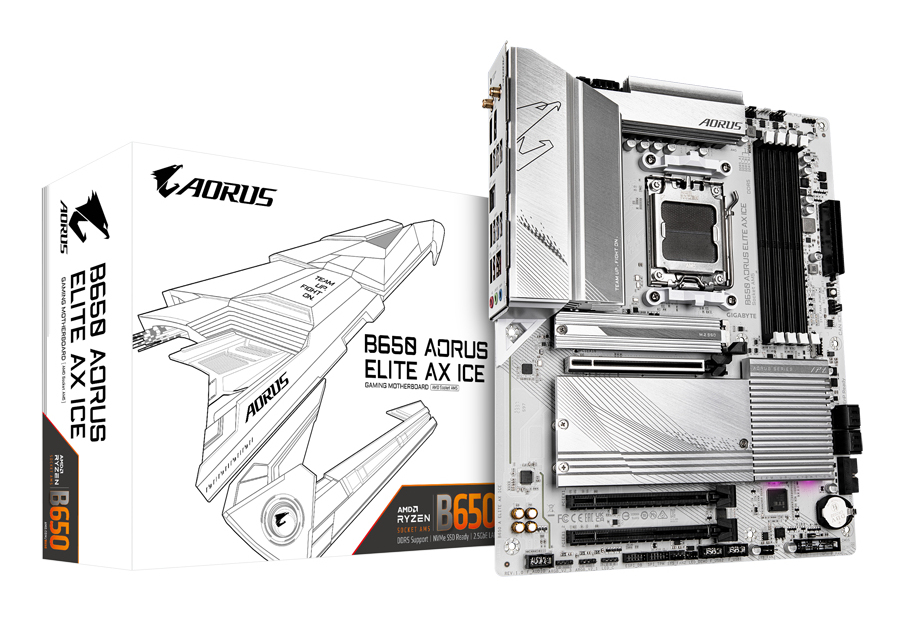

Gigabyte B650 A ELITE AX ICE
1.45446 RON
cu TVA
STOC ACTUAL:
La comanda
-
Transport gratuit !
- Livrare in 30 de zile.
Comandati telefonic si prin email:
- Telefon: 073 555 0001
- Email: [email protected]
* Comanda minima initiala este de 1000 de EURO fara TVA.
* Verasys se adreseaza exclusiv persoanelor juridice cu capital privat sau de stat.
* Toate produsele prezentate pe site au garanția oferita de producător sau furnizor.
* Informatiile pot contine mici inadvertente, unele specificaţii sau preţul, pot fi modificate de catre producător fără preaviz sau pot conţine erori de operare.
* Poza produsului are caracter informativ.
Descriere Gigabyte B650 A ELITE AX ICE
Gigabyte B650 A ELITE AX ICE este o placă de bază performantă, ideală pentru soluții IT B2B, oferind suport pentru procesoare AM5 și memorie DDR5. Cu trei sloturi PCIe x16 și trei sloturi M.2 pentru SSD-uri, acest model asigură o conectivitate extinsă și viteze ridicate de transfer de date. De asemenea, dispune de multiple opțiuni de ieșire video și un design ATX, garantând flexibilitate și eficiență în construcțiile de sisteme avansate.
Specificații tehnice Gigabyte B650 A ELITE AX ICE
| Lithium weight per battery | 0.07 g |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS jumper | Yes |
| Product colour | White |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 slots | 1 |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Power source type | ATX |
| PC health monitoring | Fan, Temperature, Voltage |
| Motherboard chipset | AMD B650 |
| DirectX version | 12.0 |
| HDCP | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Front panel connector | Yes |
| Number of chassis fan connectors | 4 |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Total number of SATA connectors | 4 |
| Thunderbolt headers | 2 |
| 12V power connector | Yes |
| Country of origin | China |
| ECC сompatibility | Non-ECC |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB |
| Supported memory clock speed (max) | 8000 MHz |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6600,6666,7000,7200,7600,7800,8000 MHz |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Maximum internal memory | 192 GB |
| Memory channels | Dual-channel |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| Wi-FI | Yes |
| WLAN controller model | Realtek RTL8852CE |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth version | 5.3 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Cables included | SATA |
| Drivers included | Yes |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.33 kg |
| DVI-D ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Processor manufacturer | AMD |
| Maximum number of SMP processors | 1 |
| Maximum internal memory supported by processor | 192 GB |
| Compatible processor series | AMD Ryzen™ 7 |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Microphone in | Yes |
| WiFi-AP antenna jack | 2 |
| USB connector type | USB Type-A, USB Type-C |
| VGA (D-Sub) ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID levels | 0, 1, 5, 10 |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 35 mm |
| Onboard-CPU | No |
| PCI | 0 |
| Serial-or-Paralel | No/No |
* Specificațiile tehnice si descrierile pot fi modificate fără preaviz de către producător.
