- Cod produs: ROG MAXIMUS Z790 HERO BTF
- Grupă: Placi de baza
- Producător: Asus
- Aparut din: 30.04.2024
- Garanție: Maxim 5 ani
Asus ROG MAXIMUS Z790 HERO BTF
4.55921 RON
cu TVA
STOC ACTUAL:
La comanda
-
Transport gratuit !
- Livrare in 30 de zile.
Comandati telefonic si prin email:
- Telefon: 073 555 0001
- Email: [email protected]
* Comanda minima initiala este de 1000 de EURO fara TVA.
* Verasys se adreseaza exclusiv persoanelor juridice cu capital privat sau de stat.
* Toate produsele prezentate pe site au garanția oferita de producător sau furnizor.
* Informatiile pot contine mici inadvertente, unele specificaţii sau preţul, pot fi modificate de catre producător fără preaviz sau pot conţine erori de operare.
* Poza produsului are caracter informativ.

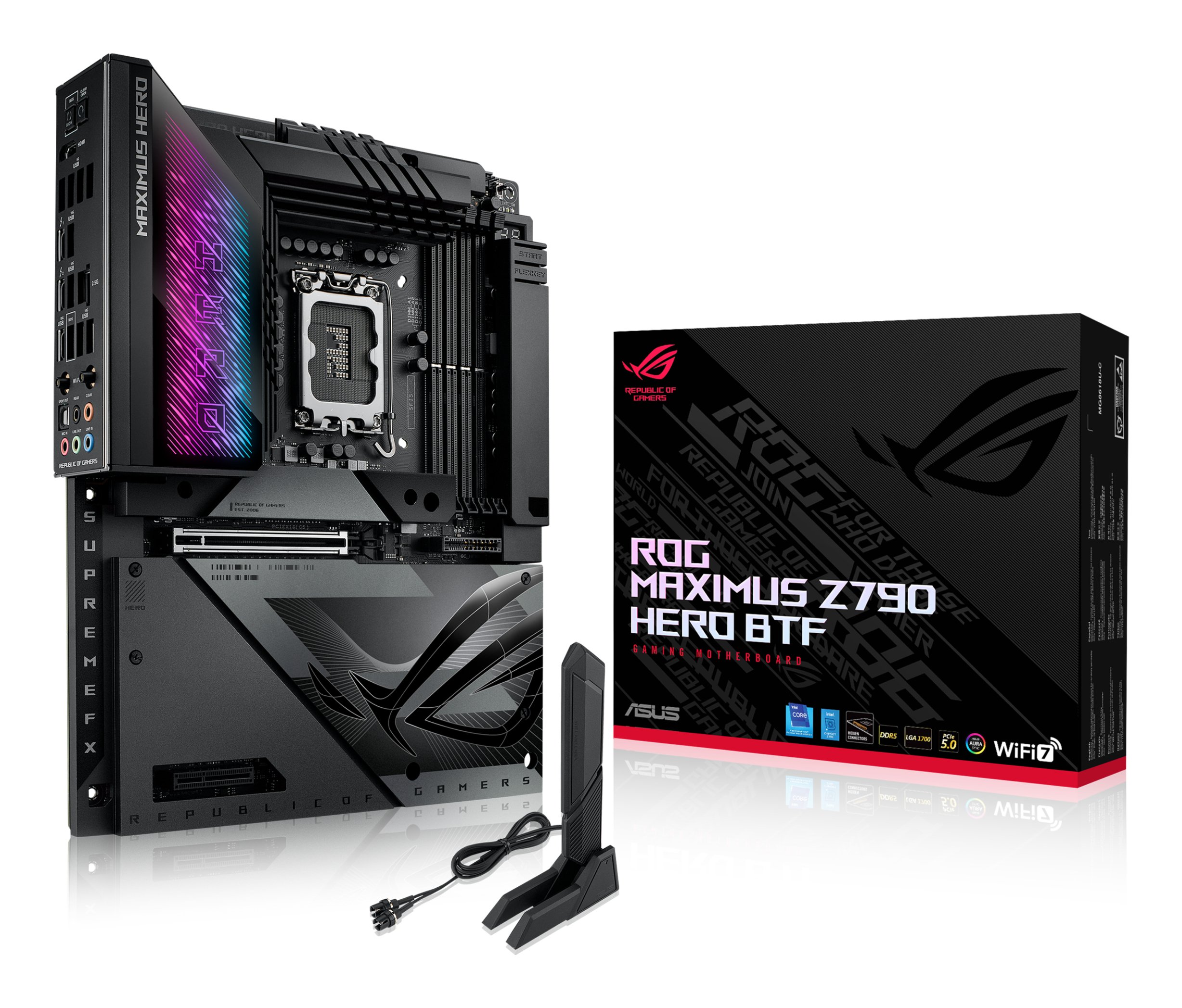

Descriere Asus ROG MAXIMUS Z790 HERO BTF
ASUS ROG MAXIMUS Z790 HERO BTF reprezintă o soluție de vârf pentru construcțiile de sisteme high-performance, având un socket LGA1700 și suport pentru 4 module DDR5. Această placă de bază dispune de multiple sloturi M.2 și SATA, precum și fiabilitatea conexiunilor PCIE 5.0 și Thunderbolt, ideală pentru aplicații profesioniste și gaming de înaltă performanță.
Specificații tehnice Asus ROG MAXIMUS Z790 HERO BTF
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 5 |
| Power source type | ATX |
| Audio Chip | Realtek ALC4082 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Windows operating systems supported | Windows 10, Windows 11 |
| Motherboard chipset | Intel Z790 |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| On-board graphics card | No |
| Parallel processing technology support | Not supported |
| Number of chassis fan connectors | 4 |
| RGB LED pin header | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2x2 connectors | 1 |
| 12V power connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 8000 MHz |
| Maximum internal memory | 192 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,8000 MHz |
| Bluetooth version | 5.4 |
| Wi-FI | Yes |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Back-to-BIOS button | Yes |
| mSATA ports quantity | 0 |
| Drivers included | Yes |
| Cables included | SATA |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| DVI-D ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| WiFi-AP antenna jack | 2 |
| Thunderbolt ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| S/PDIF out port | Yes |
| VGA (D-Sub) ports quantity | 0 |
| Line-in | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| Number of storage drives supported | 9 |
| Number of HDDs supported | 4 |
| RAID levels | 0, 1, 5, 10 |
| Supported storage drive interfaces | M.2, SATA III |
| Width | 305 mm |
| Depth | 244 mm |
| Onboard-CPU | No |
| PCI | 0 |
| Serial-or-Paralel | No/No |
* Specificațiile tehnice si descrierile pot fi modificate fără preaviz de către producător.
